Understanding types of triangles by interactive simulations

What is a Triangle?

A triangle is a three-sided polygon, one of the most fundamental shapes in geometry. It is formed by connecting three points, called vertices, with straight lines. The three sides of a triangle are straight lines, and the sum of its three interior angles is always 180°.

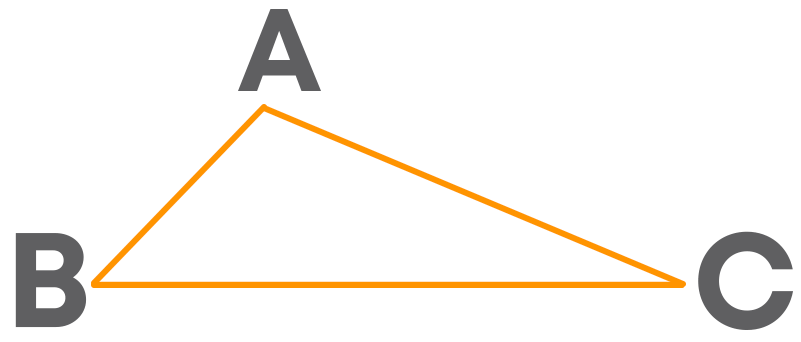

Parts of a Triangle

• Vertices: The points where the sides of a triangle meet (A, B, and C).
• Sides: The straight lines connecting the vertices (AB, BC, and CA).
• Angles: The space between two intersecting sides, measured in degrees.

Types of Triangles by Sides

Triangles can be classified based on the lengths of their sides:

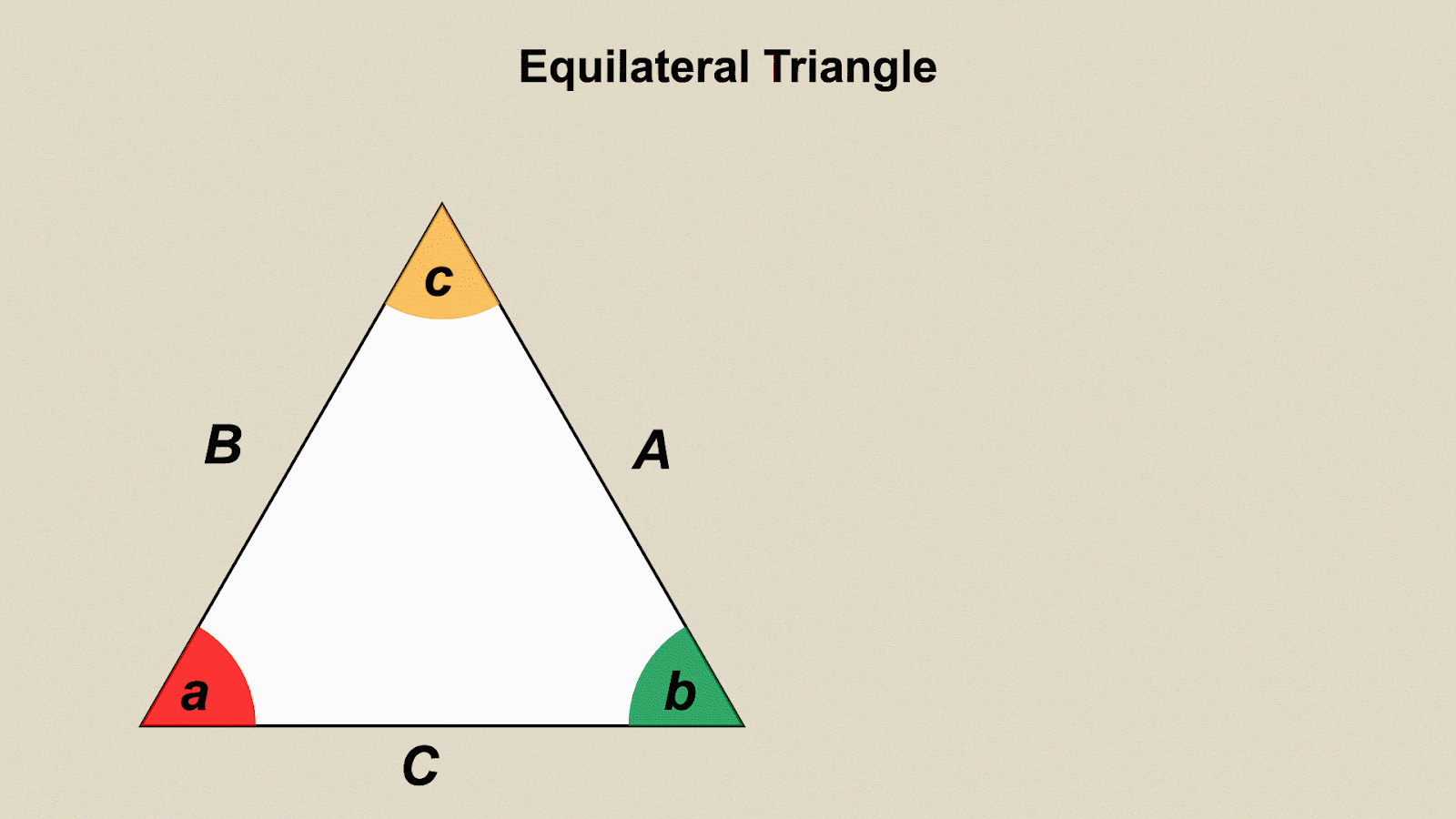

• Equilateral Triangle: All three sides are equal in length, and all angles are 60°.

• Isosceles Triangle: Two sides are of equal length, and the angles opposite these sides are equal.

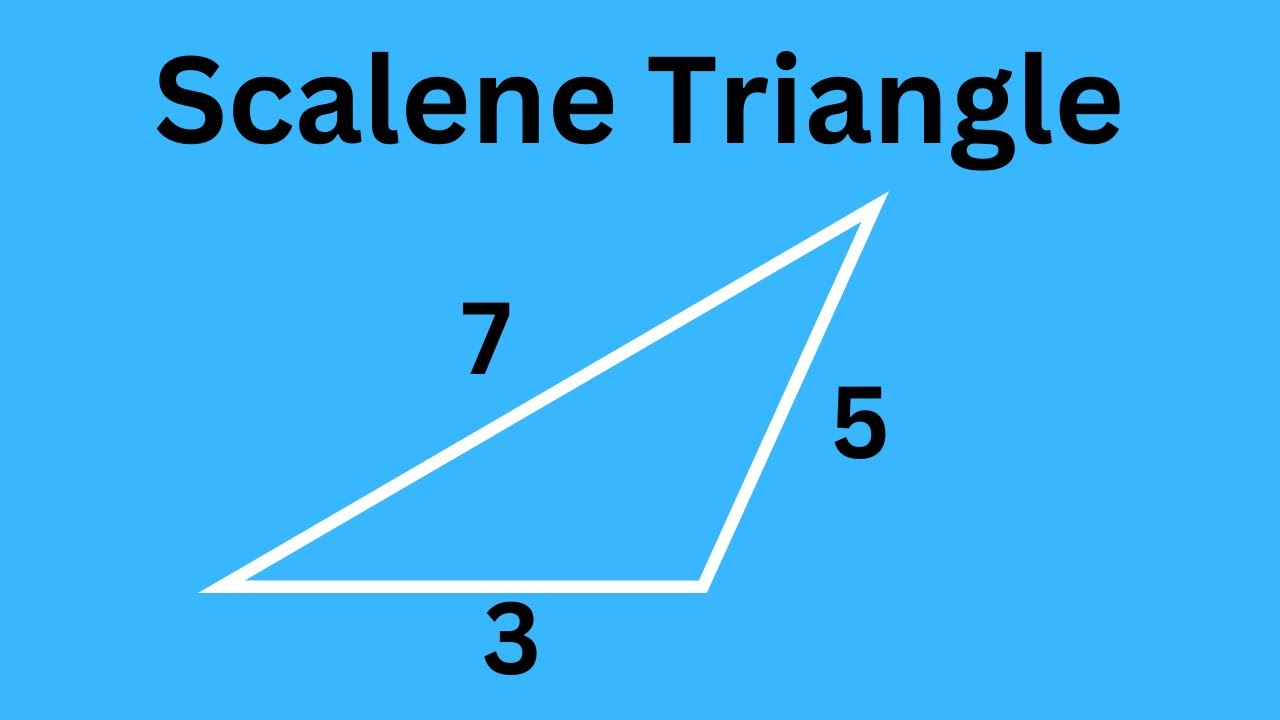

• Scalene Triangle: All three sides are of different lengths, and all angles are different.

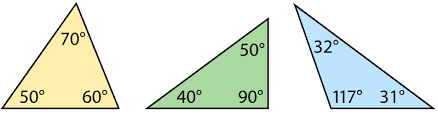

Types of Triangles by Angles

Triangles can also be classified based on their angles:

• Acute Triangle: All three angles are less than 90°.
• Right Triangle: One of the angles is exactly 90°.
• Obtuse Triangle: One of the angles is greater than 90°.

Special Right Angled Triangles

• Right-Angled Triangle: This is a triangle where one of the angles is exactly 90°. The side opposite this angle is the longest and is called the hypotenuse. Right-angled triangles are particularly important in trigonometry.
• Isosceles Right Triangle: A right triangle with two equal sides, where the two other angles are 45° each.

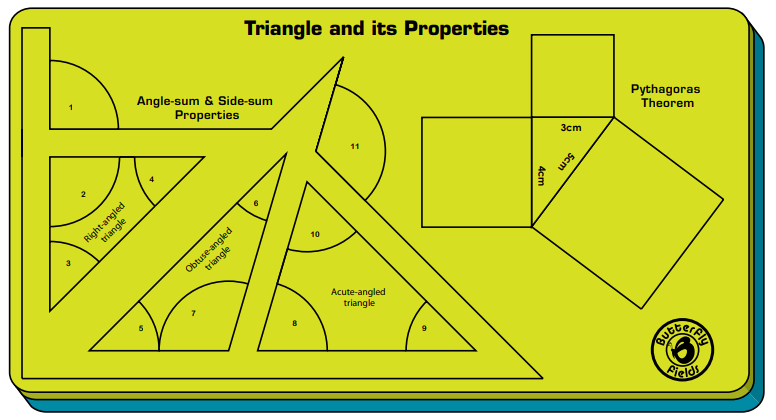

Properties of Triangles

• Angle Sum Property: The sum of the interior angles of a triangle is always 180°.
• Exterior Angle Property: An exterior angle of a triangle is equal to the sum of the two opposite interior angles.
• Triangle Inequality Theorem: The sum of the lengths of any two sides of a triangle must be greater than the length of the remaining side.

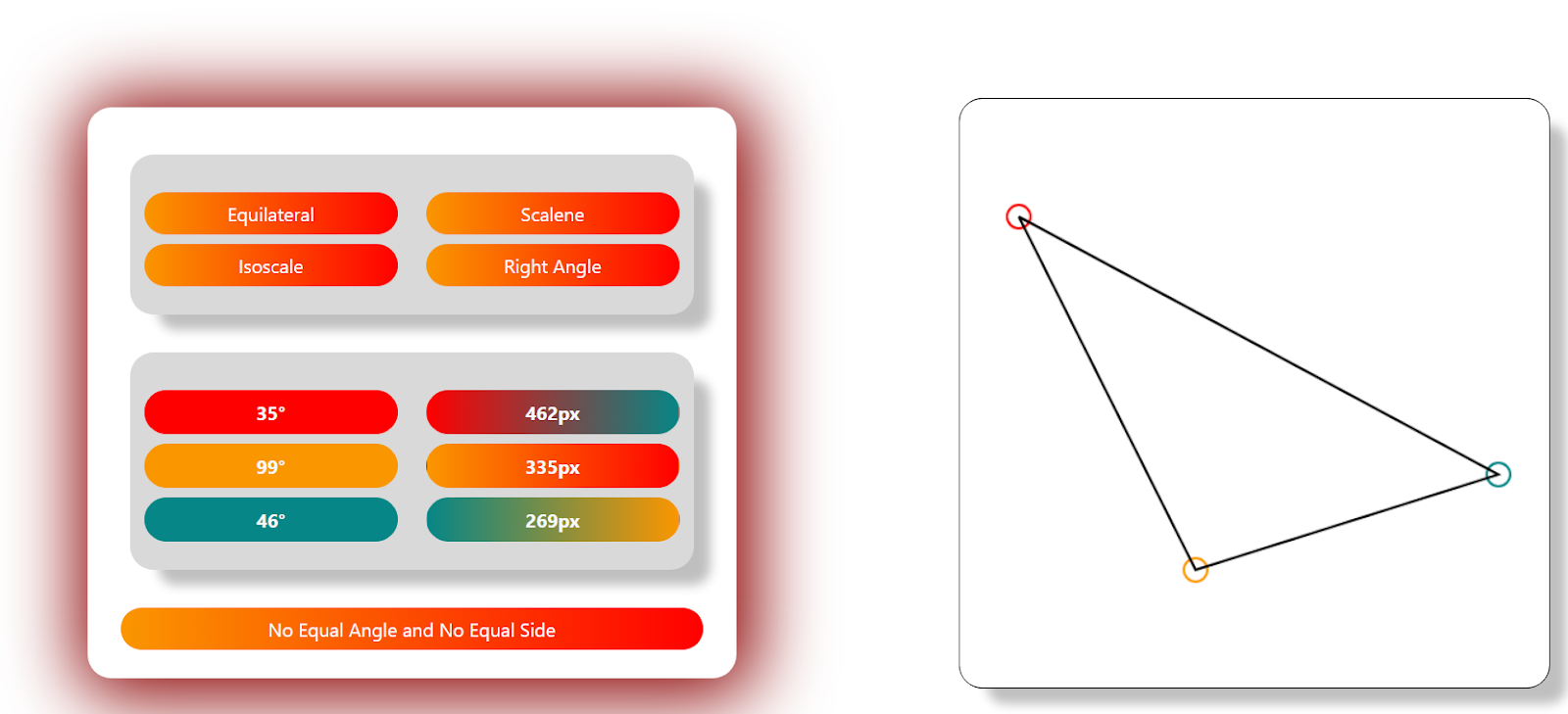

Interactive Simulations

The interactive simulation on triangles is designed to help users explore and understand the properties and classifications of triangles through hands-on manipulation. This tool allows students to visualize how changing the vertices, sides, and angles of a triangle affects its type and properties, providing a deeper understanding of this fundamental geometric shape.

Simulation Features

Interactive Shape Manipulation

Vertices Adjustment: Users can click and drag the vertices of a triangle, altering its shape dynamically. This feature enables users to explore how different configurations of sides and angles can change the type of triangle, such as forming an equilateral, isosceles, or scalene triangle.

Side Lengths: As the vertices are moved, the simulation automatically recalculates and displays the lengths of the sides. This helps users understand the relationship between side lengths and the classification of triangles.

Angle Measurement and Classification

Real-Time Angle Updates: The simulation displays the internal angles of the triangle, which update as the shape is manipulated. This allows users to see how the angles change with the movement of vertices while maintaining the constant sum of 180 degrees.

Angle-Based Classification: The simulation classifies the triangle based on its angles, identifying whether the triangle is acute-angled, right-angled, or obtuse-angled. This helps users see the direct impact of angle manipulation on the triangle’s classification.

Triangle Classification

Type Identification: The simulation highlights the specific type of triangle being formed, whether it’s equilateral, isosceles, or scalene. This feature helps users understand the defining characteristics of each type, such as equal sides in an equilateral triangle or equal angles in an isosceles triangle.

Property Verification: Users can verify the properties of each triangle by manipulating the shape to see if it meets the criteria, such as checking whether all sides are equal in an equilateral triangle or whether one angle is exactly 90 degrees in a right-angled triangle.

Real-Life Applications

Understanding triangles is crucial in many real-world contexts:

• Construction: Triangles are used in designing stable structures, such as bridges and roofs, because of their inherent strength.
• Navigation: Triangles are used in navigation and map-making, especially through techniques like triangulation.
• Art and Design: Triangular shapes are commonly used in art and design to create balance and visual interest.

Example Problem

Given an isosceles triangle where the two equal sides are each 5 cm long and the base is 6 cm, calculate the height of the triangle.

You can solve this by dividing the triangle into two right-angled triangles and using the Pythagorean theorem.

Practice Questions

1. If a triangle has sides of lengths 3 cm, 4 cm, and 5 cm, classify the triangle by its sides and angles.
2. What is the measure of each angle in an equilateral triangle?

Summary

Triangles are a basic yet essential part of geometry. By understanding the different types of triangles and their properties, you can solve a wide variety of problems. The interactive simulations we’ve provided will help you visualize these concepts, making your learning experience both engaging and effective.
